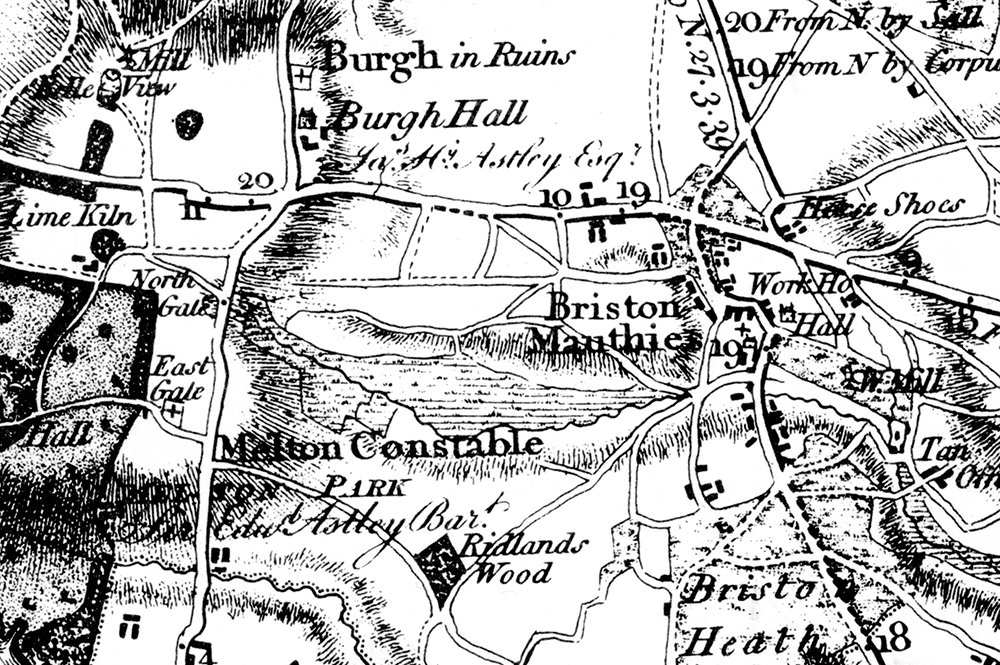

Faden's map - 1797

Burgh Parva map

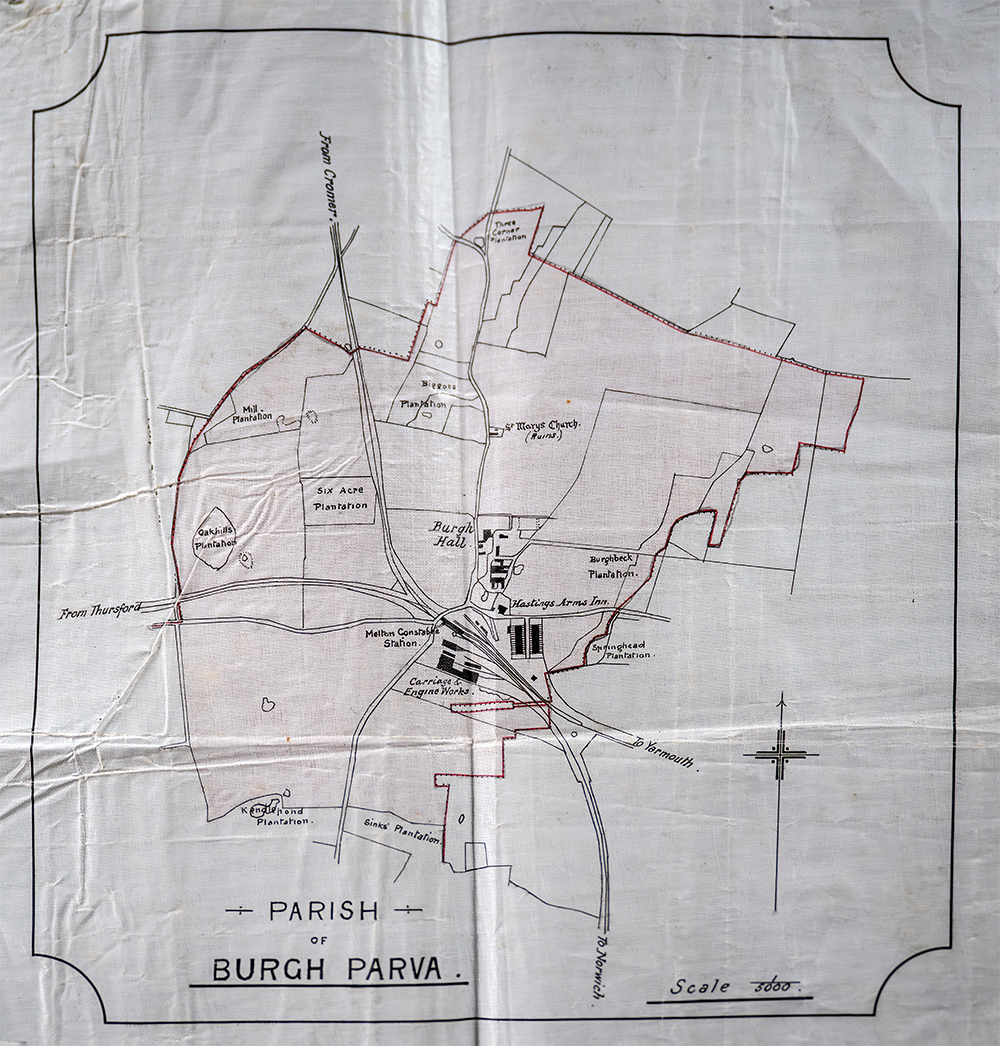

Map of Burgh Parva before the mame was changed to Melton Constable

L&F Railway map 1880

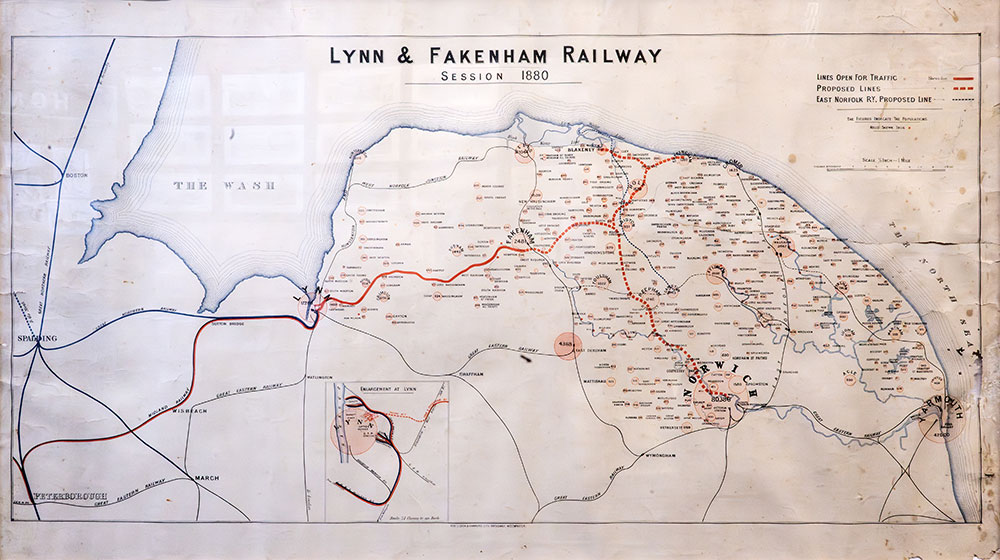

Lynn & Fakenham Railway map 1880

1885 map

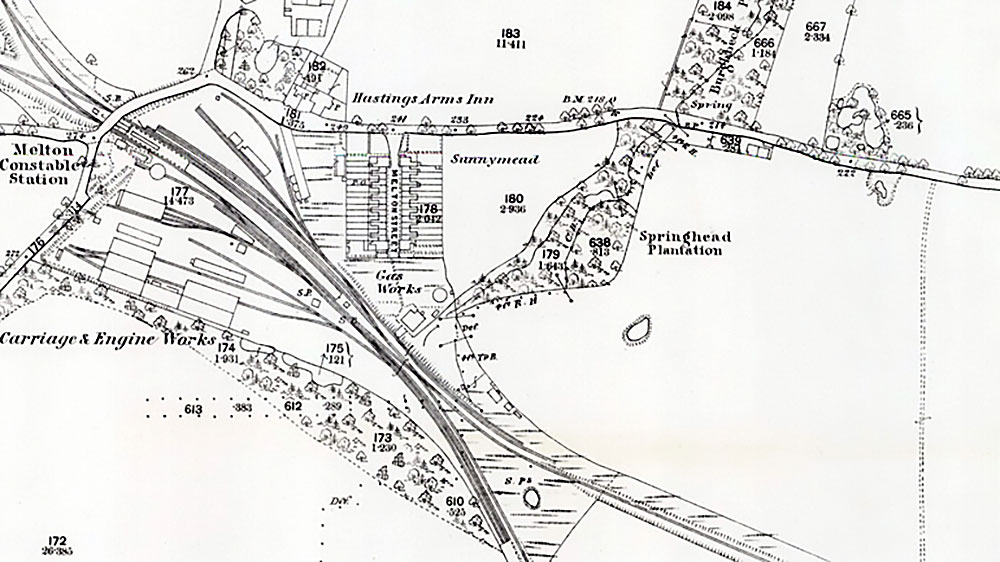

O. S. Map 1885 - Melton Street only
Courtesy of NLS map images

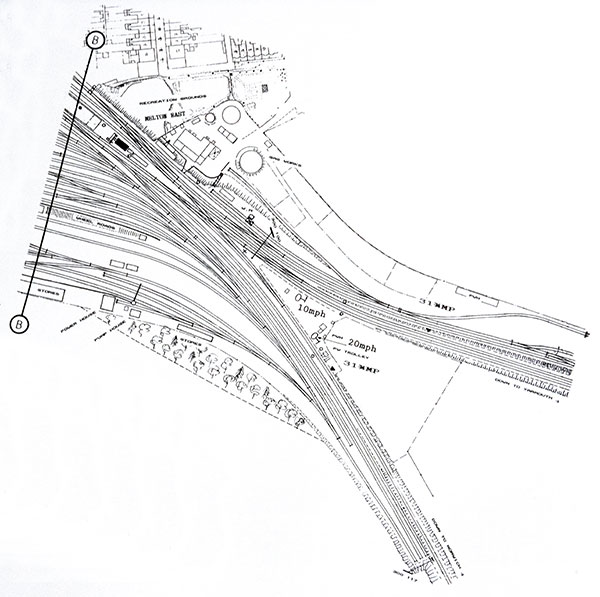

Melton West map - Nigel Digby Melton East Map - Nigel Digby

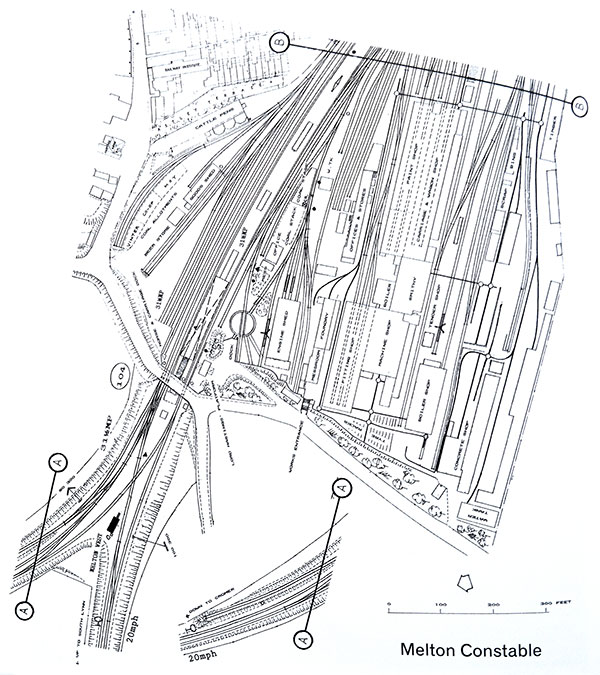

Melton West map
 Courtesy of Nigel Digby
Melton East map
 Courtesy of Nigel Digby

1904 map

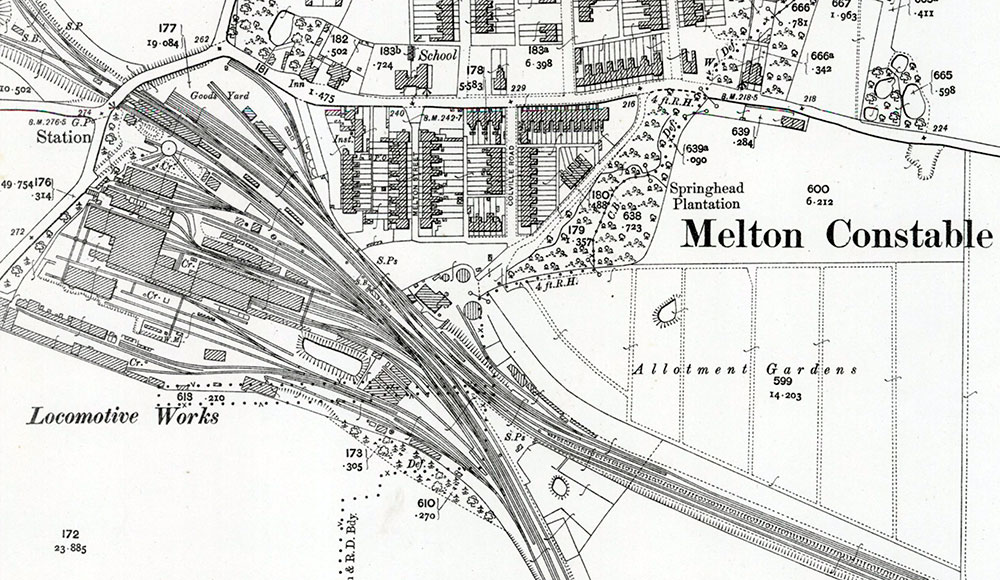

O. S. Map 1904
Courtesy of NLS map images

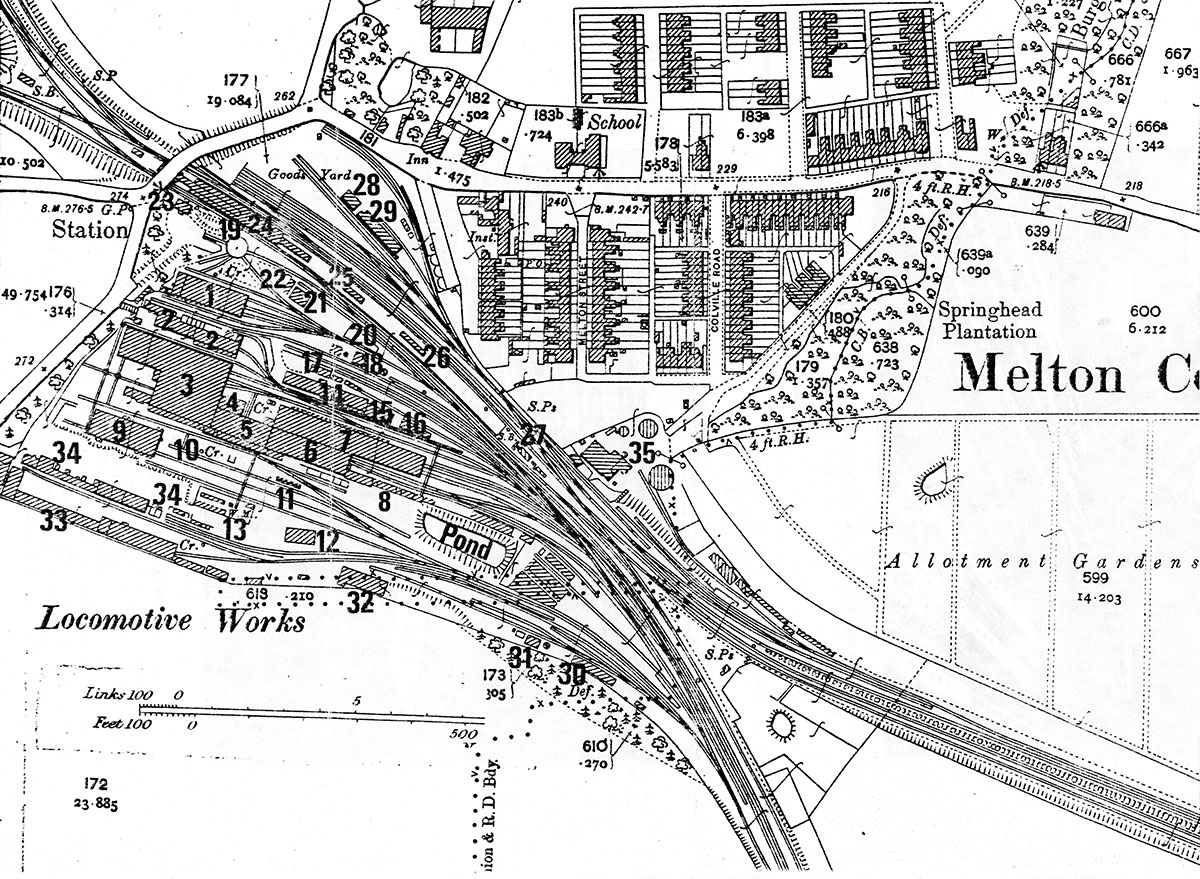

Melton Constable works map 1904
O.S. map 1904

1. Loco Shop
2. Time Office, Mess Room, Foundry
3. Fitting Shop, Machine Shop, Gas Fitters, Brass Finishers
4. Boiler House
5. Blacksmiths' Shop
6. Wagon Shop
7. Carriage Shop
8. Pattern Shop, Varnish, Leather,Trimmers, Fitters, Blacksmiths
9. Boiler Shop
10. Tender Shop
11. Toilets
12. Pattern Stores,Spare Boats Breydon Bridge (White City)
13. Compound
14. General Offices, General Stores
15. Paper Stores
16. Timber Shed
17. Ambulance Room, Clerks Toilets
18. Water Tanks for Locomotives

 19. Turntable
20. Coal Stage
21. Oil Stores
22. Loco Mess Room
23. Lord Hasting's Waiting Room
24. Porters Room, Station Entrance Steps, Booking Office, Parcels Office, Refreshment Rooms, W. H. Smith Bookstall
25. Waiting Room, Ladies Toilets
26. Telegraph Office, Station Master's Office, Inspector's Office
27. Melton East Signal Box, Toilets, Shunters' Hut, C&W Hut, S&T Hut
28. Goods Office
29. Goods Shed
30. Key Stores for Permanant Way
31. Pump House, Power House
32. Timber Drying Shed
33. Permanent Way Shops
34. Concrete Shop
35. Gas Works

Melton Constable 2025 overlay of 1904 map
Melton Constable 2025 overlay of 1904 map
Courtesy of NLS map images

c.1906

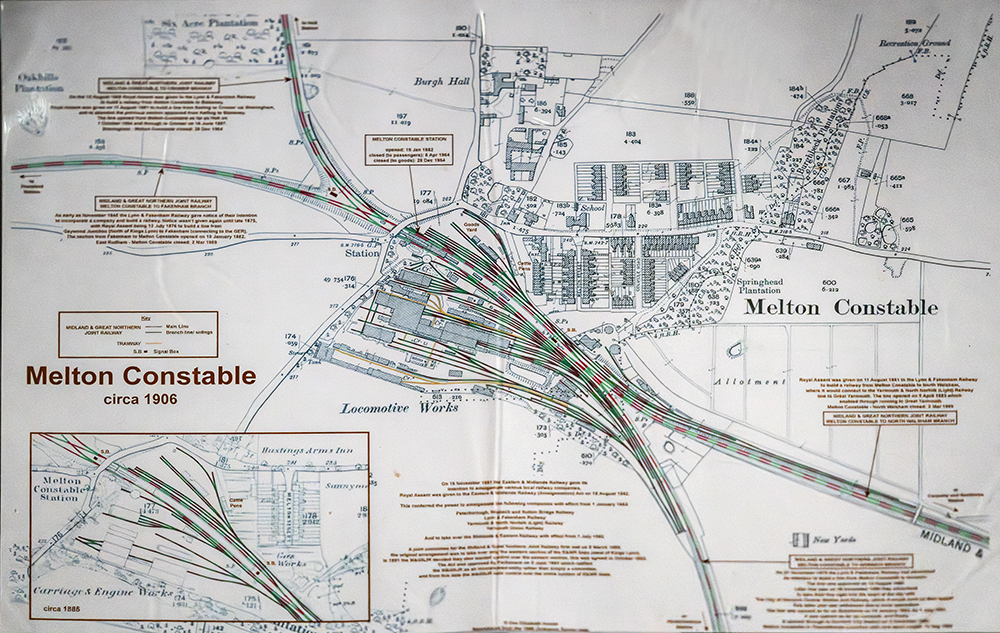

Map c.1906

Melton Constable- Briston boundary map 1913

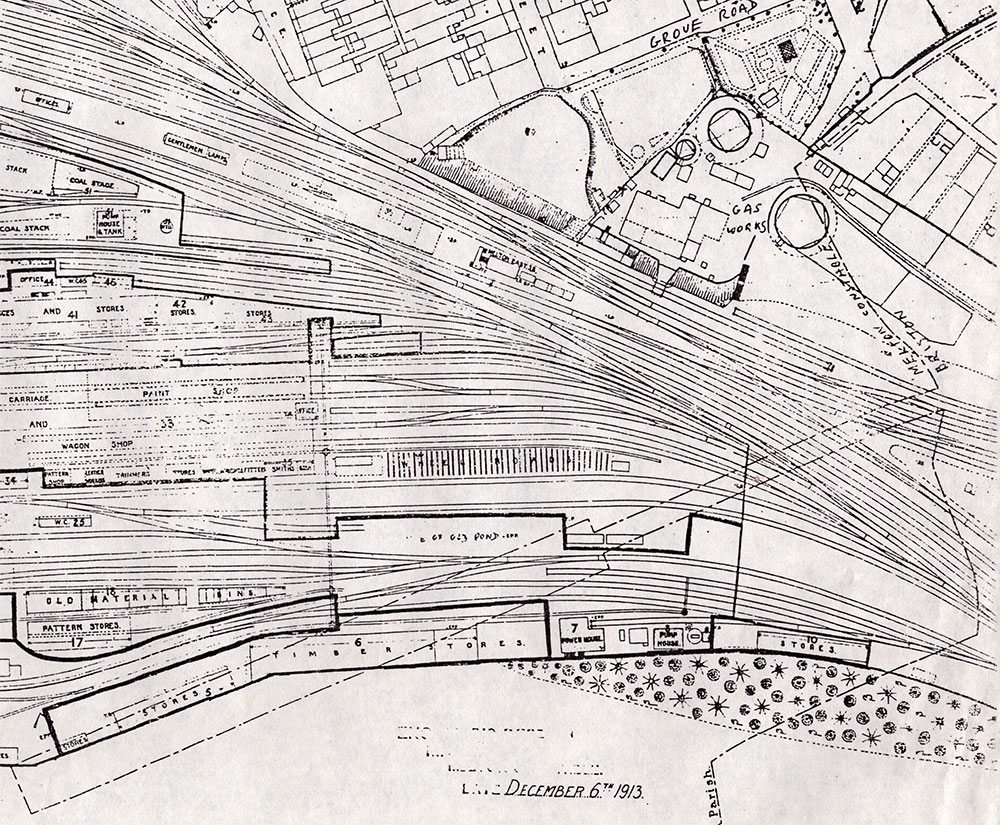

Melton Constable - Briston boundary map - 6th December 1913

Map 22Jan1948

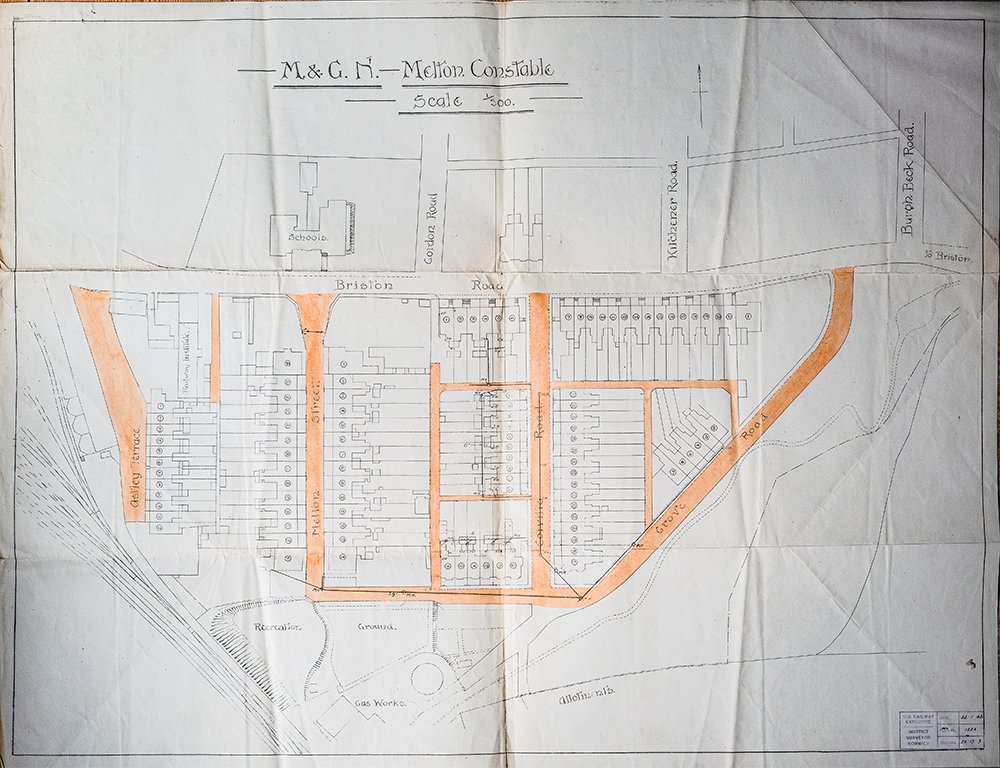

Melton Constable map - 22nd January 1948
1948 map

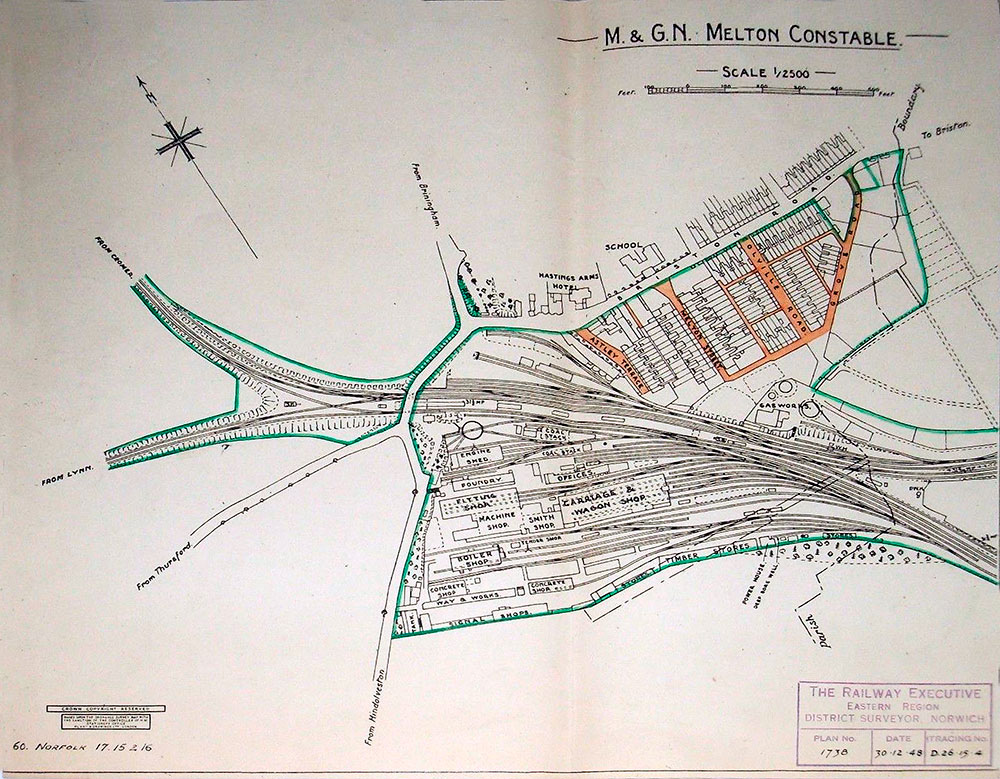

Melton Constable map - 30th December 1948

Signalling map

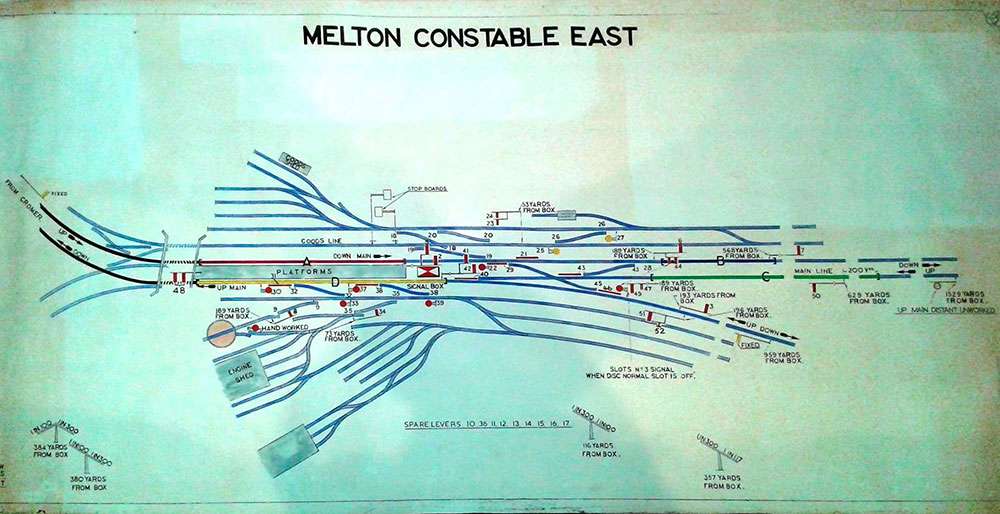

Melton Constable East Signalling Map

M&GN Route Map

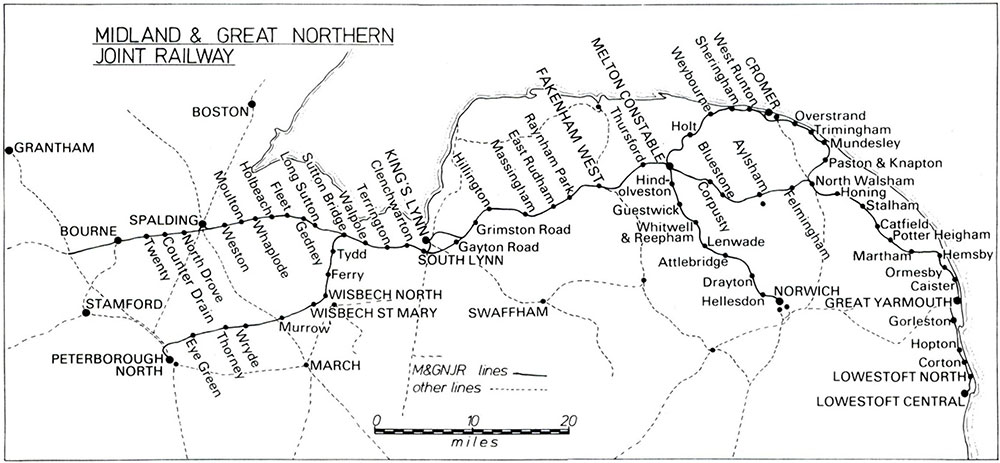

M&GN Route Map
Courtesy of M&GN Circle

Rail map

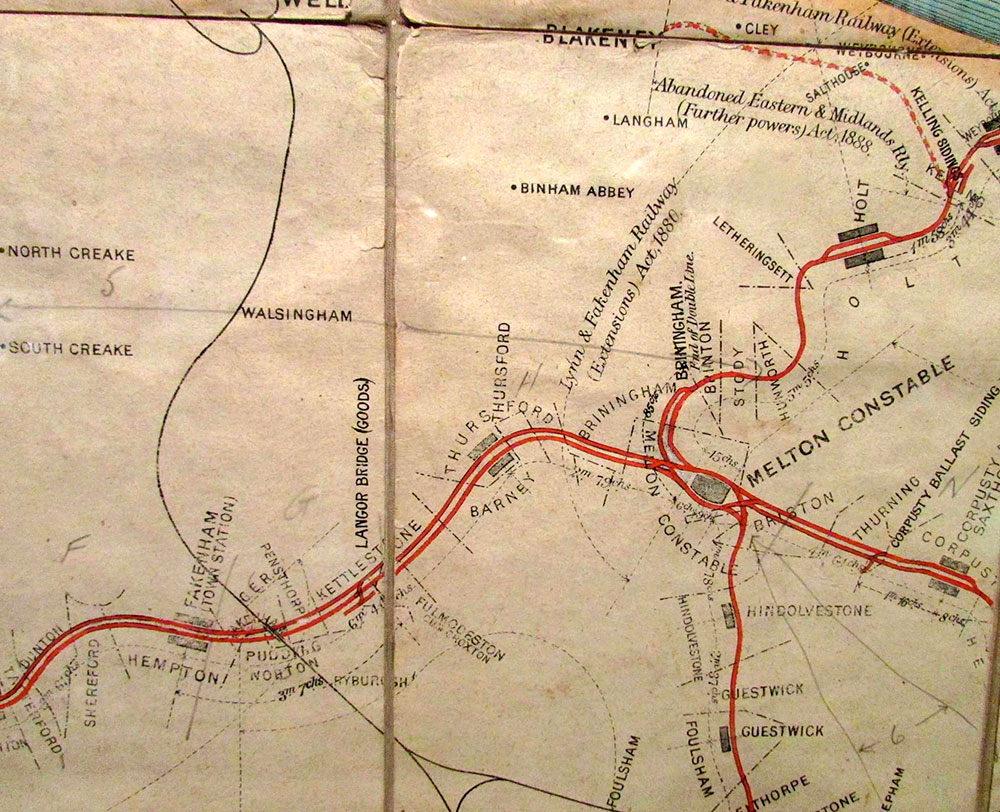

Melton Constable Local Rail Map showing the abandoned scheme for a branch to Blakeney

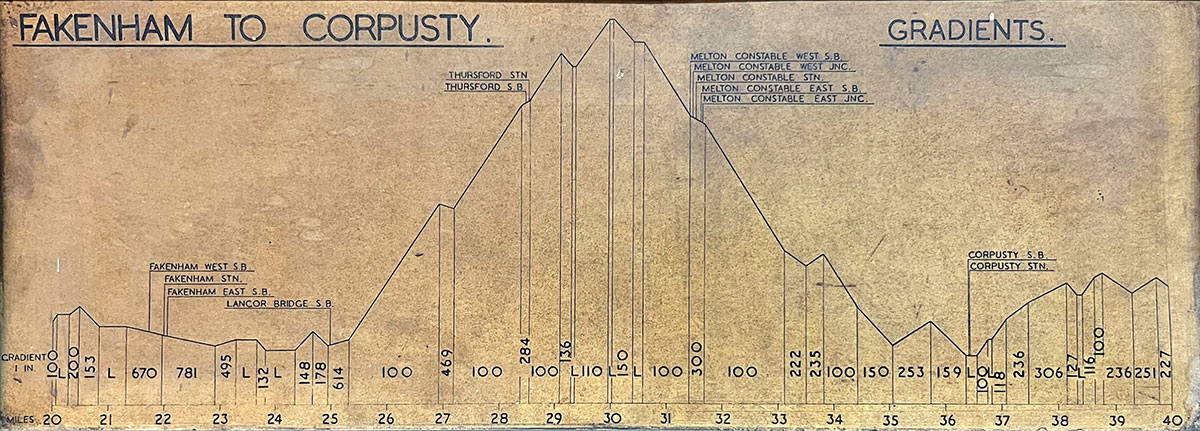

Fakenham - Corpusty gradients
Highest point is at Briningham close to Belle Vue tower

Meltoon Constable map 1950

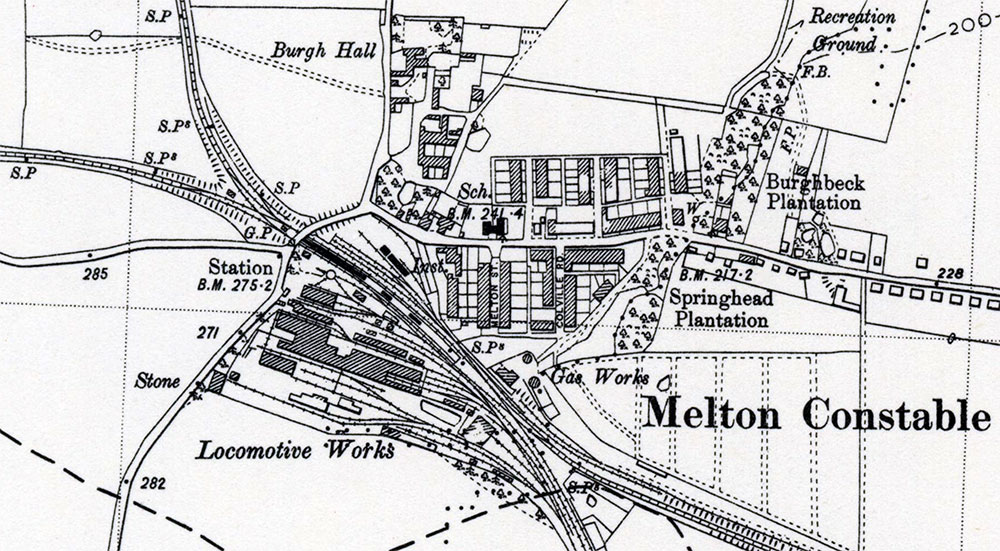

O. S. Map 1950
Courtesy of NLS map images

Nigel Digby overlay map 2025

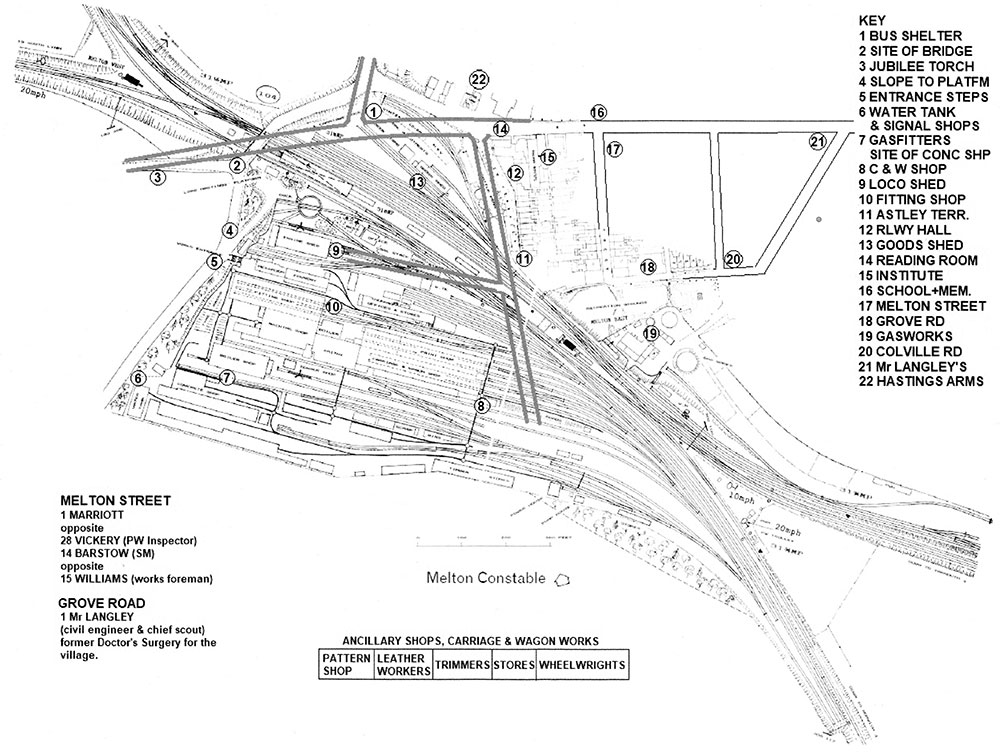

Nigel Diby's overlay map 2025
